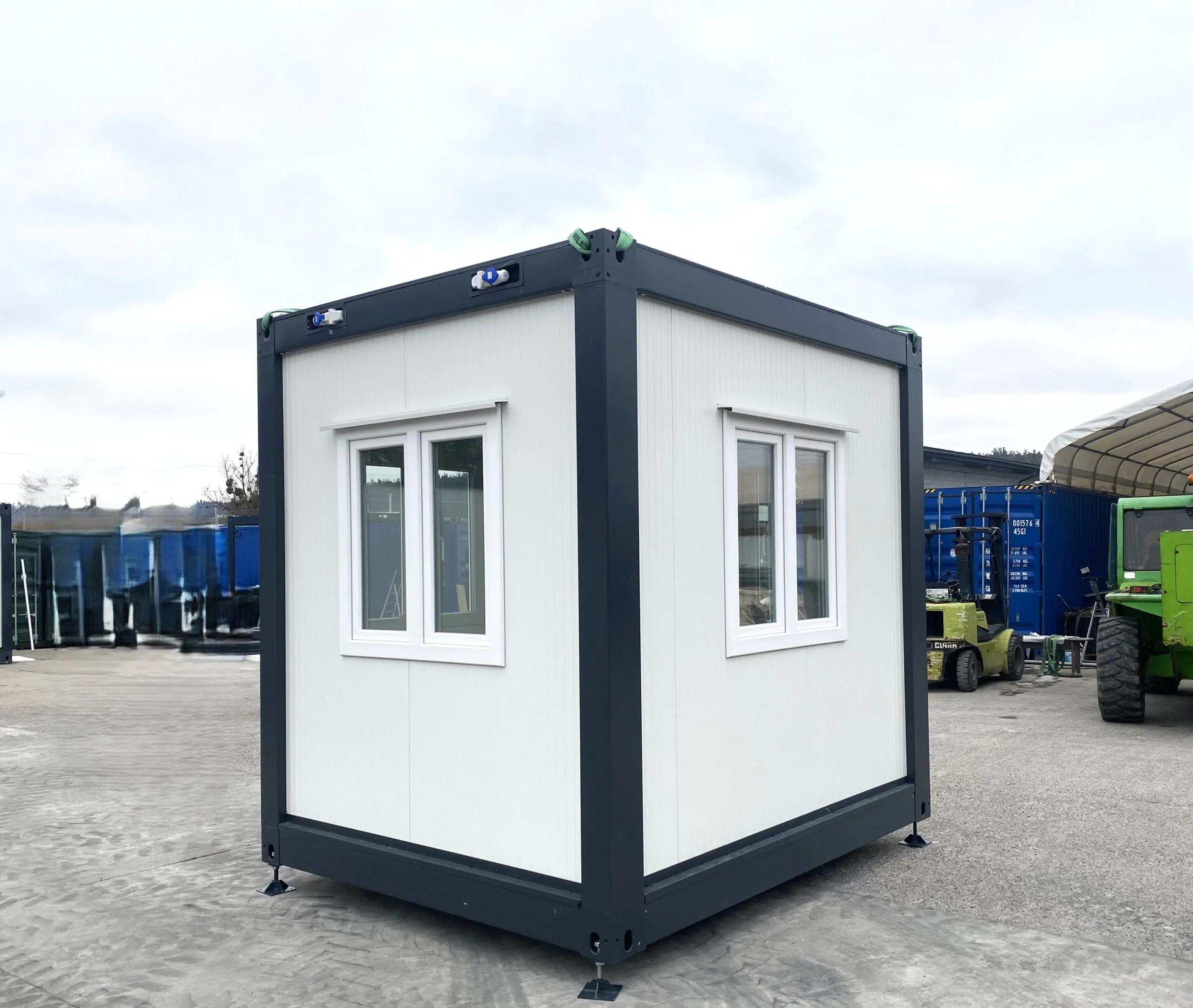

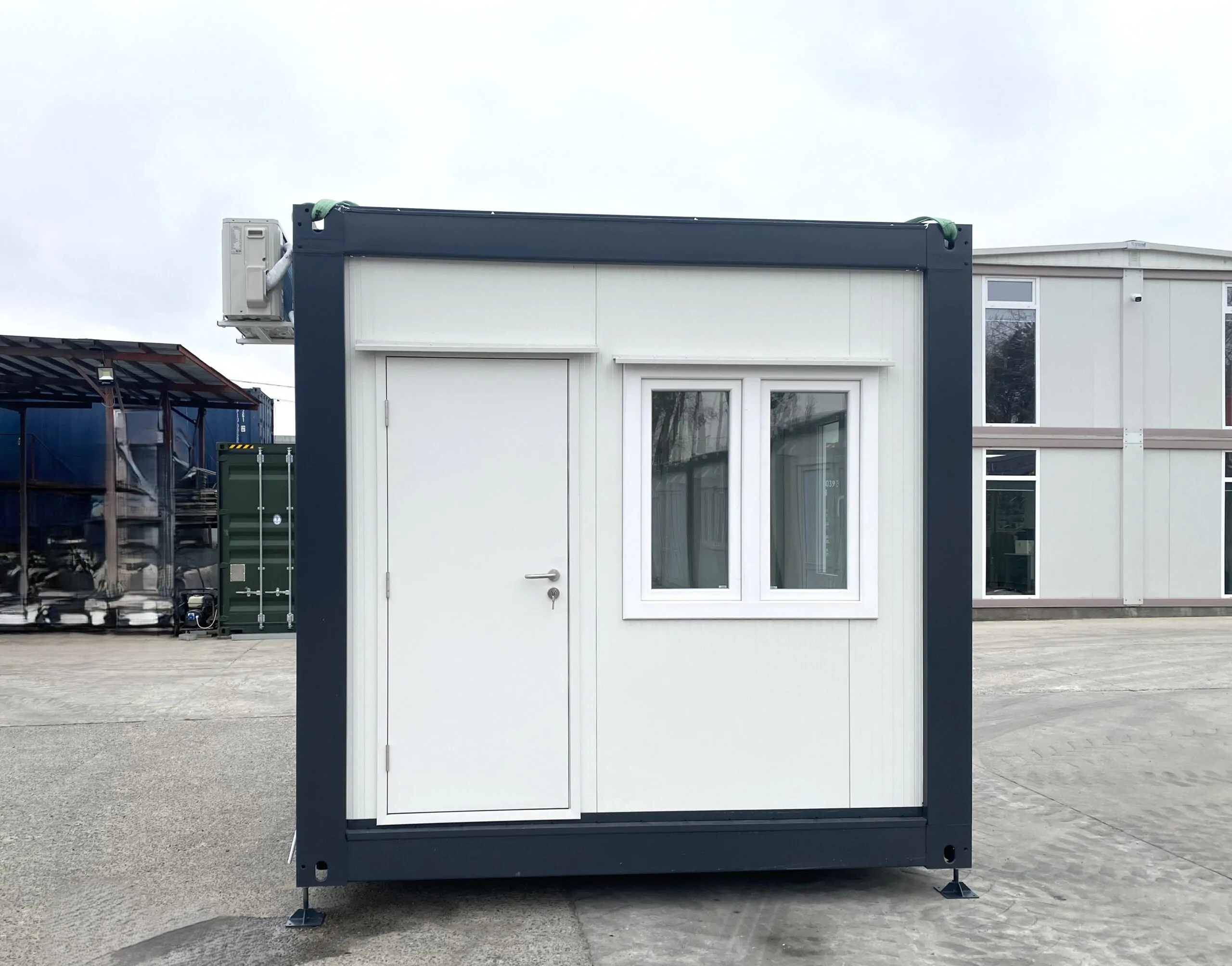

[ Security post 360 view
]
Standard model guard post – provides continuous surveillance and control over the territory. Protect your business or residential complex with reliable and convenient modular guard posts.

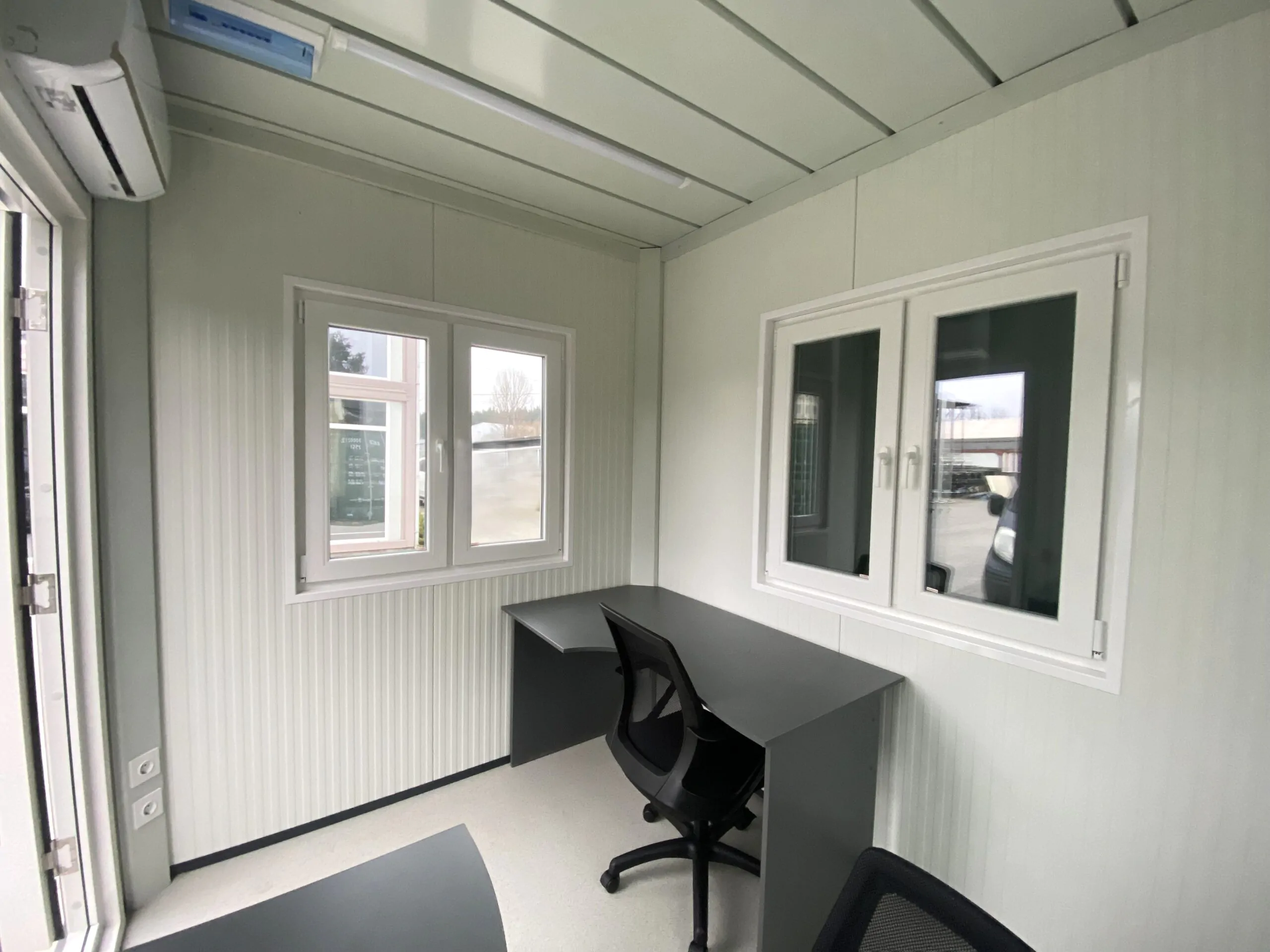

Standard layout: one room, two PVC windows with double-glazed windows, metal doors.
Modular guard posts – a reliable solution for the security of your facility.
Dementions:
3000 x 2440 H-2900 mm
Ceiling height: 2500 mm
Area: 7.3 m2
Available colors:

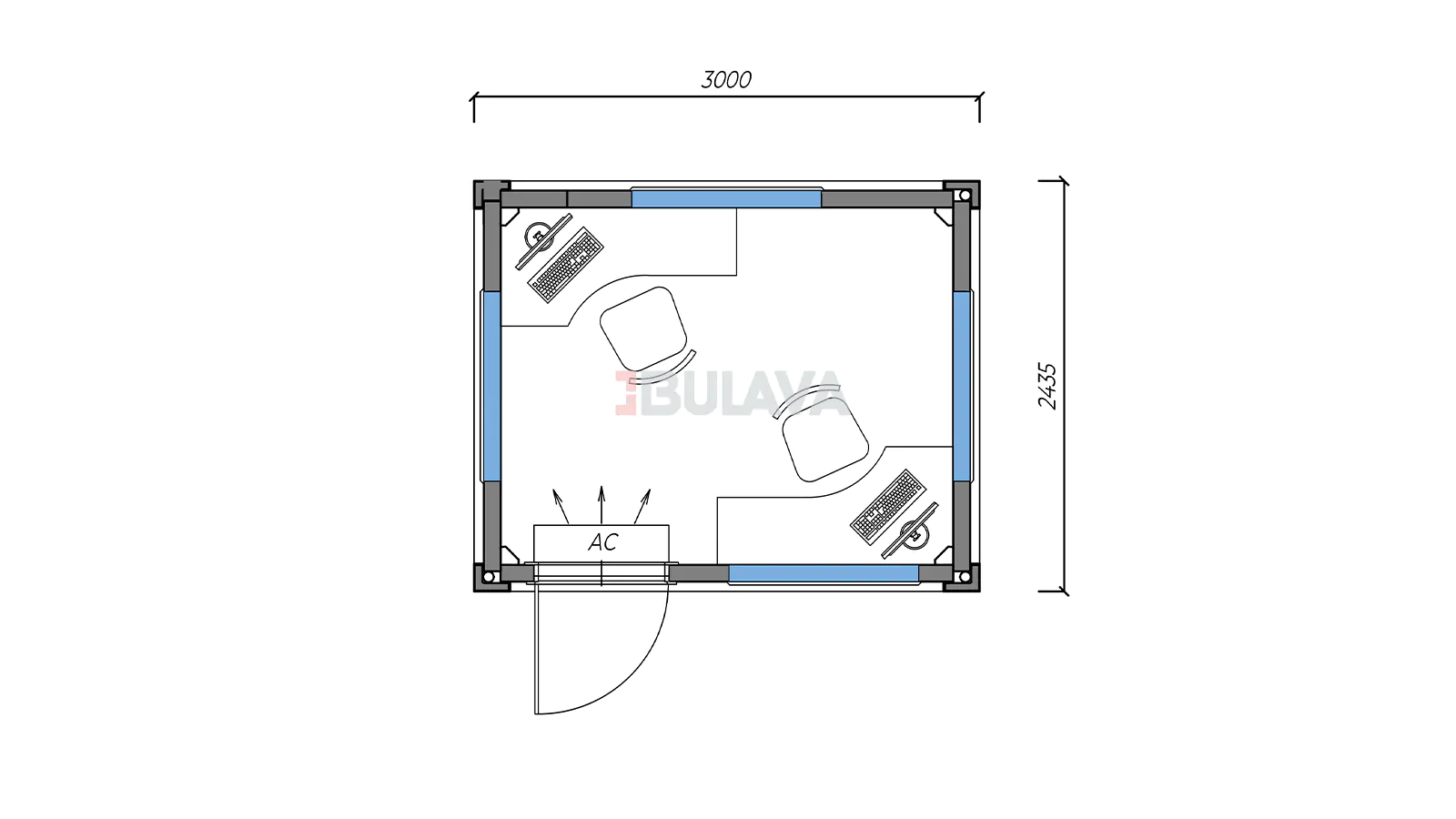

Security guard cabin
BM-3241
BM-3241
Dementions:
L х W х H: 3000 х 2435 х 2900 mm
Ceiling height: 2500 mm
Area: 7.2 m2
Send a request
Security guard cabin
BM-3242
BM-3242
Dementions:
L х W х H: 3000 х 2435 х 2900 mm
Ceiling height: 2500 mm
Area: 7.2 m2
Send a request
Security guard cabin
BM-3243
BM-3243
Dementions:
L х W х H: 3000 х 2435 х 2900 mm
Ceiling height: 2500 mm
Area: 7.2 m2
Send a request

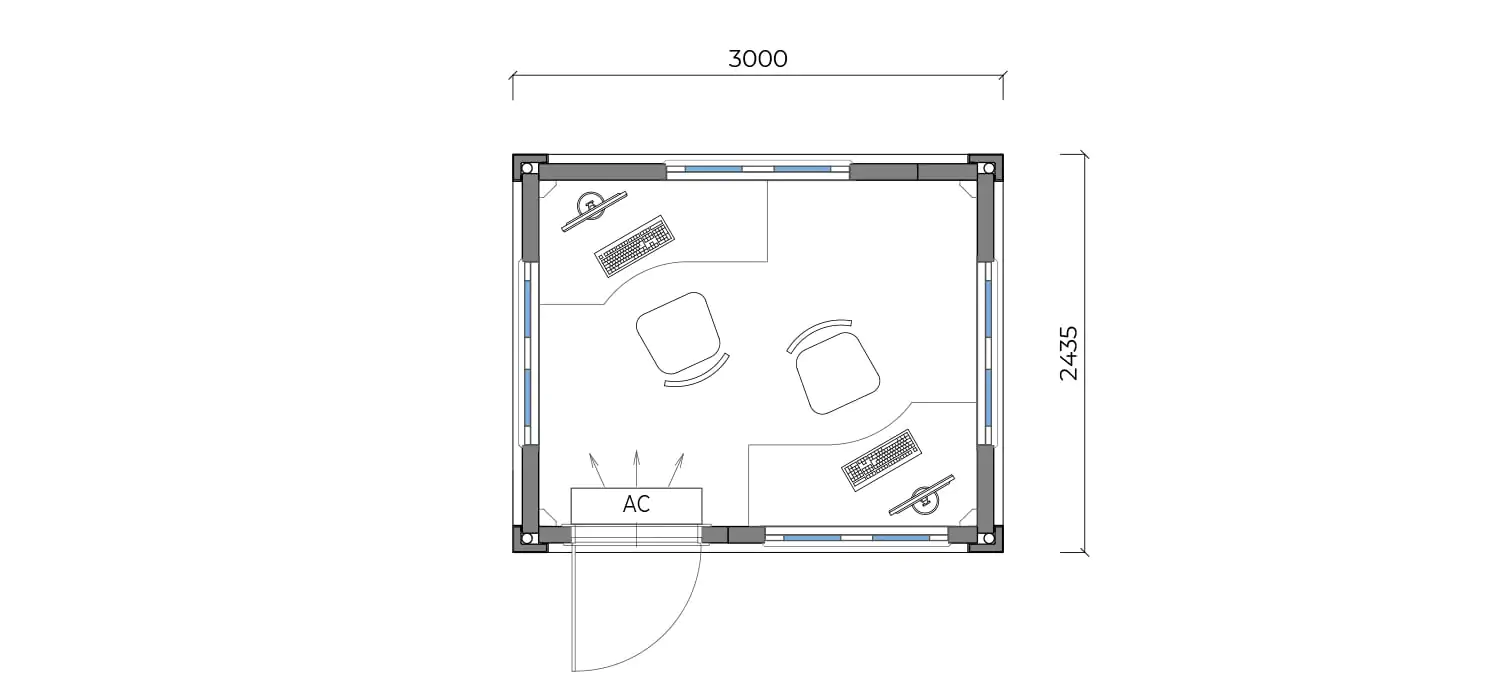

Security guard cabin
BM-3244
BM-3244
Dementions:
L х W х H: 3000 х 2435 х 2900 mm
Ceiling height: 2500 mm
Area: 7.2 m2
Send a request
Standard container sizes
2.4m x 3m (10′ container)
Dimensions (WxLxH): 2400 x 3000 x 2900 mm
Ceiling height: 2500 mm
Area: 7.2 m2
2.4m x 6m (20′ container)
Dimensions (WxDxH): 2400 x 6000 x 2900 mm
Ceiling height: 2500 mm
Area: 14.4 m2
3 m х 6 m
Dimensions (WxLxH): 3000 х 6000 х 2900 мм
Ceiling height: 2500 мм
Area: 18 м2
3 m х 7 m
Dimensions (WxLxH): 3000 х 7000 х 2900 мм
Ceiling height: 2500 мм
Area: 21 м2
Variety of colors
We know how important deadlines are, so we provide a constant warehouse program for the rapid production and installation of block containers.
The frame and walls of the container are available in the following color schemes, which can be combined according to your choice: RAL 9003, RAL 6020, RAL 7016
The color of the walls inside all standard containers is RAL 9003, the optimal color that visually expands the space inside and gives comfort.
Frame design
The frame of our containers, strong and reliable, is made of press-bent galvanized steel profiles.
Container frame metal thickness: 3 mm
Metal thickness of corner joints: 4 mm
Galvanized metal, and powder coating, is the protection of the metal from environmental influences and increase the service life of the modular structure.
Powder coating.
Available colors: RAL 9003, RAL 7016, RAL 6020
Containers can be easily combined and create the necessary space.
Possibility of stacking in two floors.
Floor construction
Even the standard models of our modular containers with floor insulation, which provides comfortable conditions for operation at any time of the year.
The floor joists are made of galvanized metal profiles.
Outside galvanized sheet metal
Thermal insulation: mineral wool 150 mm
18mm fiber cement board, linoleum
The strength of the structure ensures good performance and the possibility of installing additional equipment.
Walls
The walls of the container are certified sandwich panels from a leading manufacturer, which guarantees the necessary thermal insulation performance for our region and the comfortable use of block containers in various fields.
The walls of the container are certified sandwich panels from a leading manufacturer, which guarantees the necessary thermal insulation performance for our region and the comfortable use of block containers in various fields.
The lock connection of the sandwich panels ensures the avoidance of heat loss.
Thermal insulation: PIR 100 mm, with galvanized and painted outer and inner metal sheets 0.5 mm thick
Fire spread limit M0. Fire resistance class EI 30.
Colors available: RAL 9003, RAL 7016, RAL 6020
Insulation type and wall color can be customized according to your requirements.
Roof structure
Seam roof: galvanized metal sheet 0.5 mm
The rafters are made of L-shaped galvanized metal profiles
Thermal insulation: 150 mm
Inner surface: galvanized painted metal sheet 0.5 mm
The rafters are made of L-shaped galvanized metal profiles
Thermal insulation: 150 mm
Inner surface: galvanized painted metal sheet 0.5 mm
To ensure proper living conditions in modular rooms, the ceiling height inside the container complies with European standards and is 2500 mm

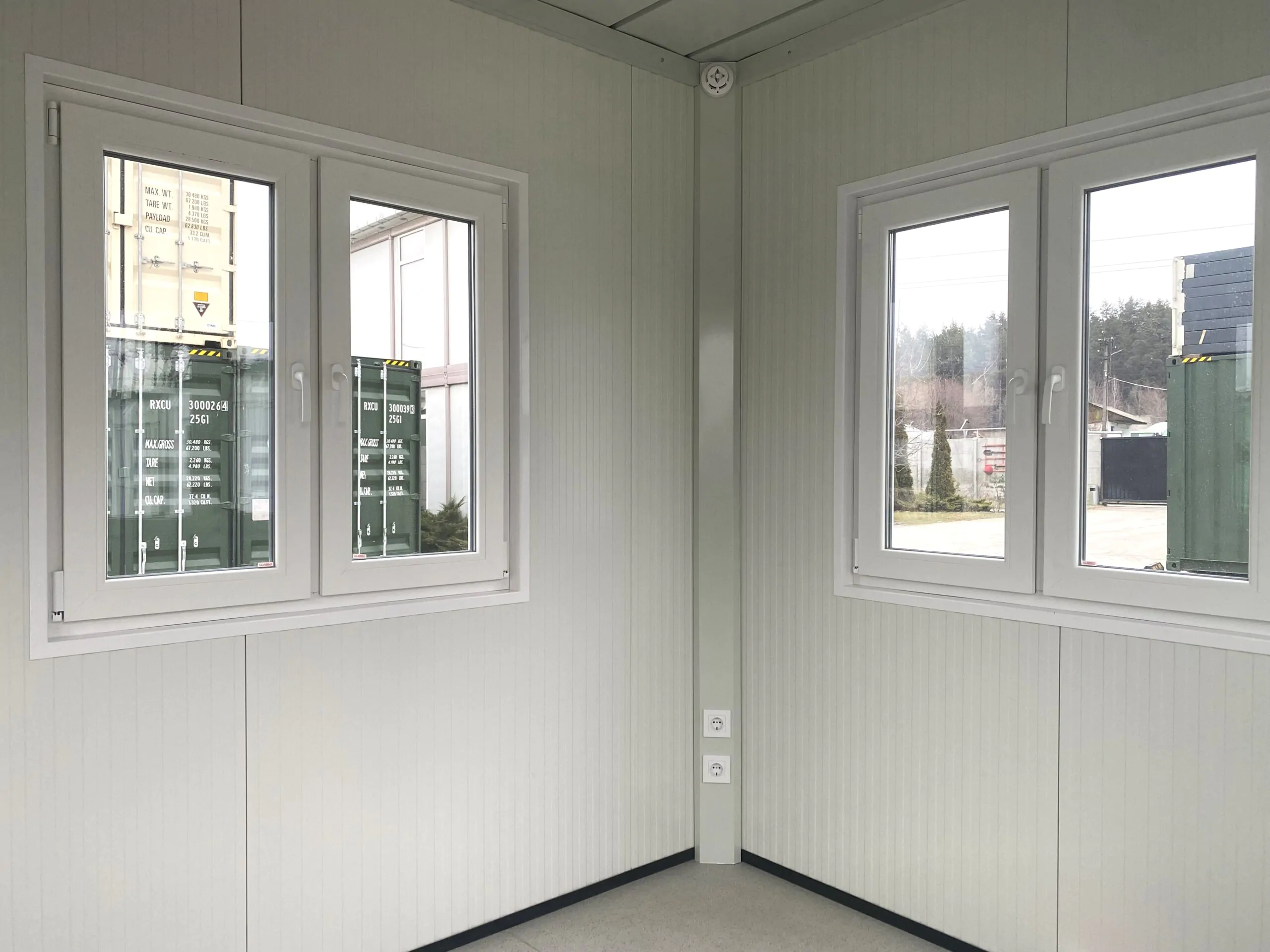

Windows
Our modular containers are equipped with double-glazed PVC windows from a manufacturer of European quality in compliance with all norms and standards.
The modular design allows windows to be installed on either side of the container.
For additional security and protection from the sun, we can equip the windows with roller shutters on request.
Concealed electricity
We use concealed wiring in our cabins, no cables on the walls or extensions on the floor.
The electrical system is made according to the standard and includes: a switchboard, automatic switches, a differential or RCD switch, lighting – LED lamps 18 W.
Outside, 2 input power plugs are mounted in the frame of the container for the possibility of instant connection of the container to the network at the facility.
Conditioning
For an optimal microclimate inside the modular premises, we install inventory split air conditioning systems. These systems have a high energy saving class (A +), capable of not only cooling, but also heating the room at low temperatures.
Everything is well thought out from securing the air conditioner to protecting it.
Optional equipment
Block containers are a universal solution for applications in various industries. All equipment with additional plumbing or other necessary equipment is available upon your request. In a short time, you will receive a block container completely ready for work with all the necessary equipment.
[
